AC Load Breaker Switch

Timetric electrical is a large-scale AC Load Breaker Switch manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

Timetric AC Load Breaker Switch Introduction

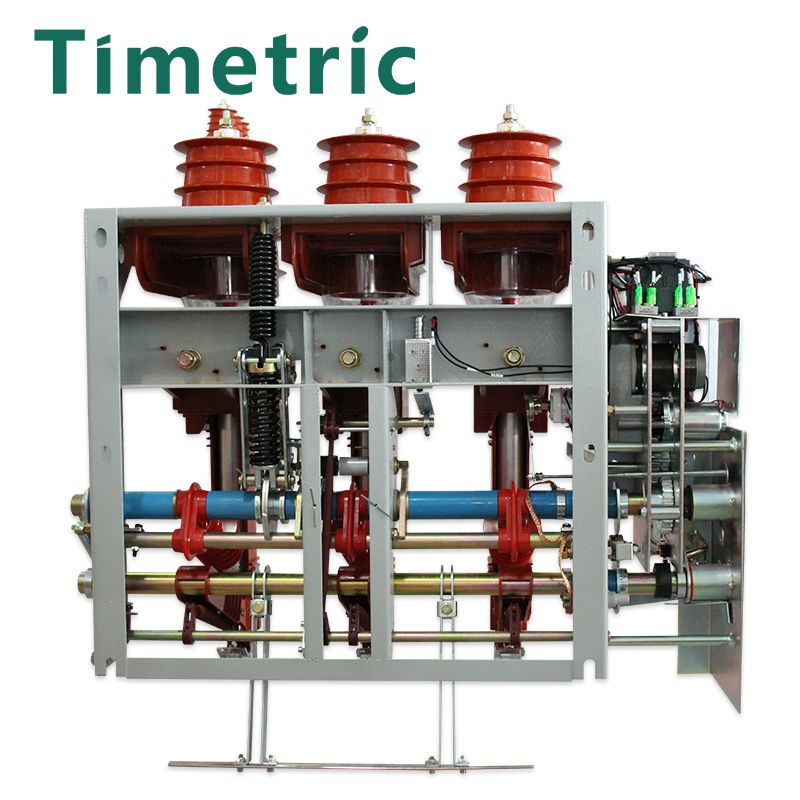

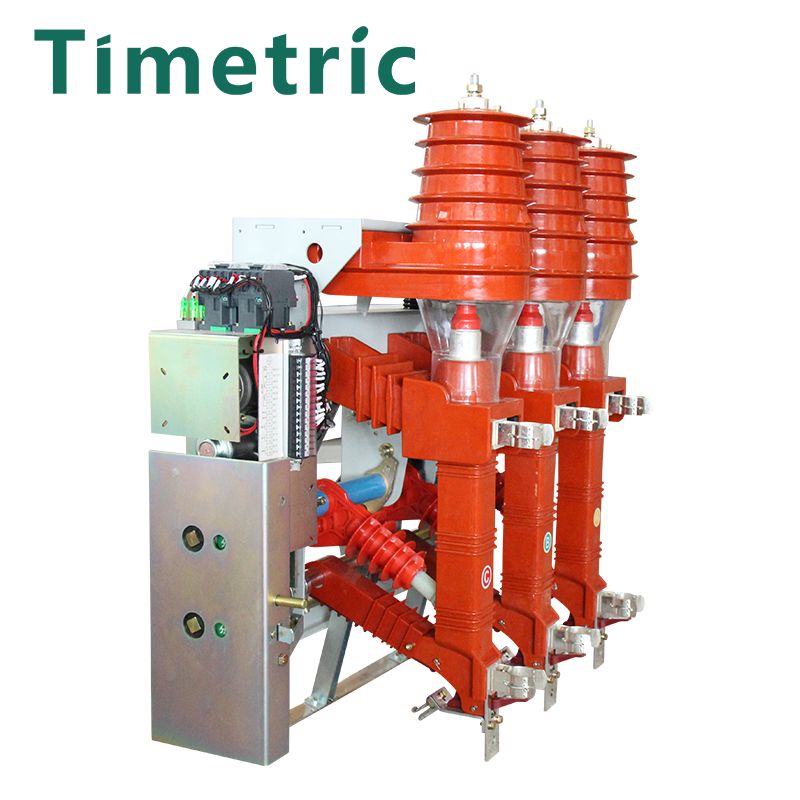

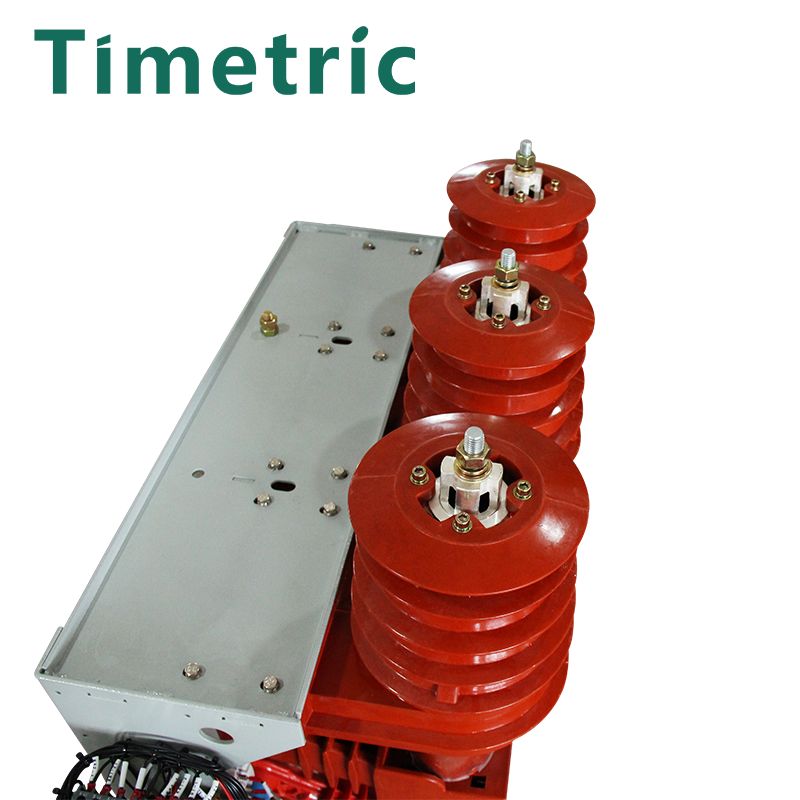

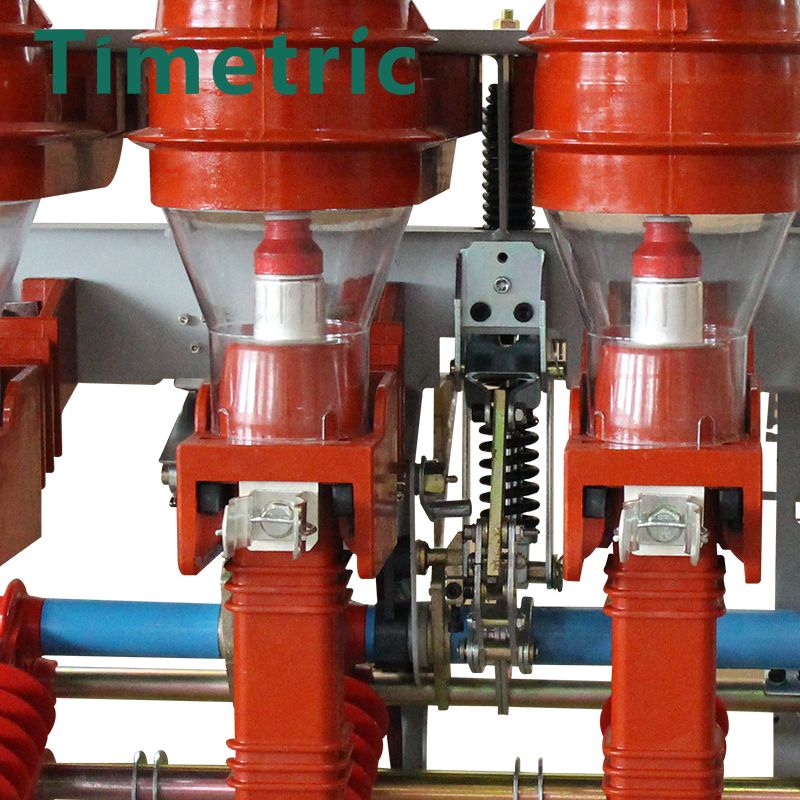

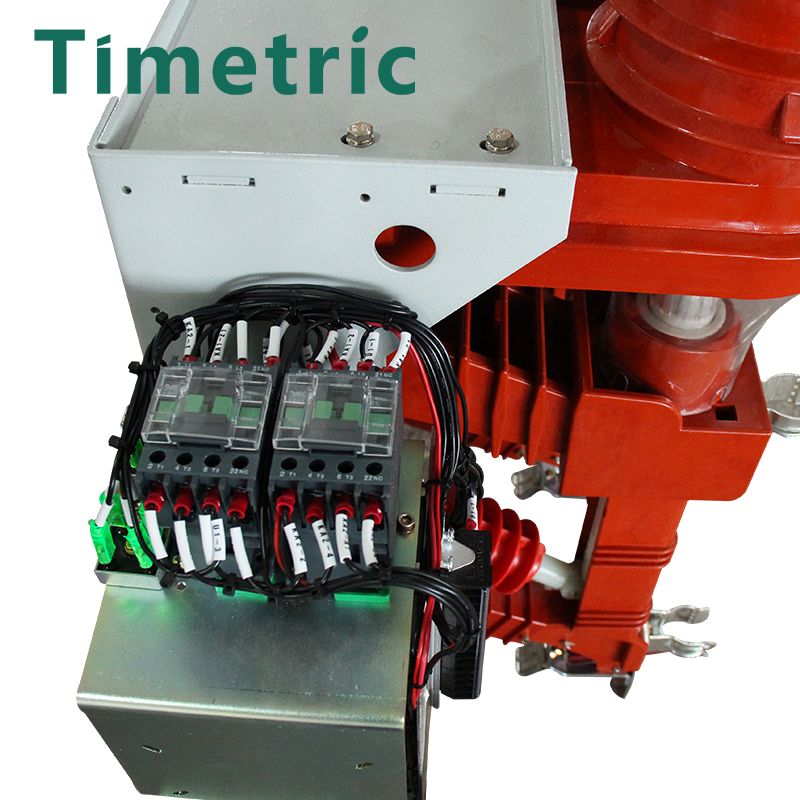

The AC Load Breaker Switch with fuse is a three phase switch equipment designed for breaking or closing load current, loop closed current, no-load transformer and cable charging electric current, and close short circuit current in 12kv, 50hz electric systems. The equipment is equipped with an earthing switch to withstand short-circuit current. The FKN12-12RD/125-31.5 air high voltage load break switch-fuse combination unit is composed of the FKN2-12D load switch and SLAJ-12(XRNT-12) H.V current-limiting fuse box, and it can reliably break short-circuit currents up to any current, including breaking work load switch current, fuse short-circult breaking current, and breaking joint working between the current and the full shor-circuit current in any over-current, while the fuse allows, through its impact load switch sub-gate.

Timetric AC Load Breaker Switch Parameter (Specification)

No.	Item	Unit	FKN-12D/630-20	FZN-12R.D/125-31.5
1	Rated voltage	kV	12
2	Rated frequency	Hz	50
3	Rated ampere	A	630	125
4	Thunder voltage	kV	Isolation:85
5	1min voltage	kV	Earthling 42, isolation:48
6	Ampere	kA	20(4S)
7	Stable current	kA	50
8	current	kA	50	-
9	Breaking current	kA	-	31.5
10	Moving current	kA	-	1.5
11	Breaking ampere	kA	1.8
12	Transformer capacity	kVA	1250
13	Power charge current	A	10
14	Breaking times	times	>100
15	Breaking time	S	-	>0.06
16	current	kA	20(2S)	20(2S)
17	Earthling switch voltage	kA	50	50
18	Motor voltage	V	AC220, DC48

Timetric AC Load Breaker Switch This equipment should be used under the following conditions: ambient temperature 25ºC±40ºC; elevation 1000m; humidity with daily average humidity ≤95% and monthly average humidity ≤ 90%; and no risk of fire, explosion, serious pollution, chemical corrosion, or severe vibration. If used outside of these conditions, please contact the manufacturer for further assistance.
