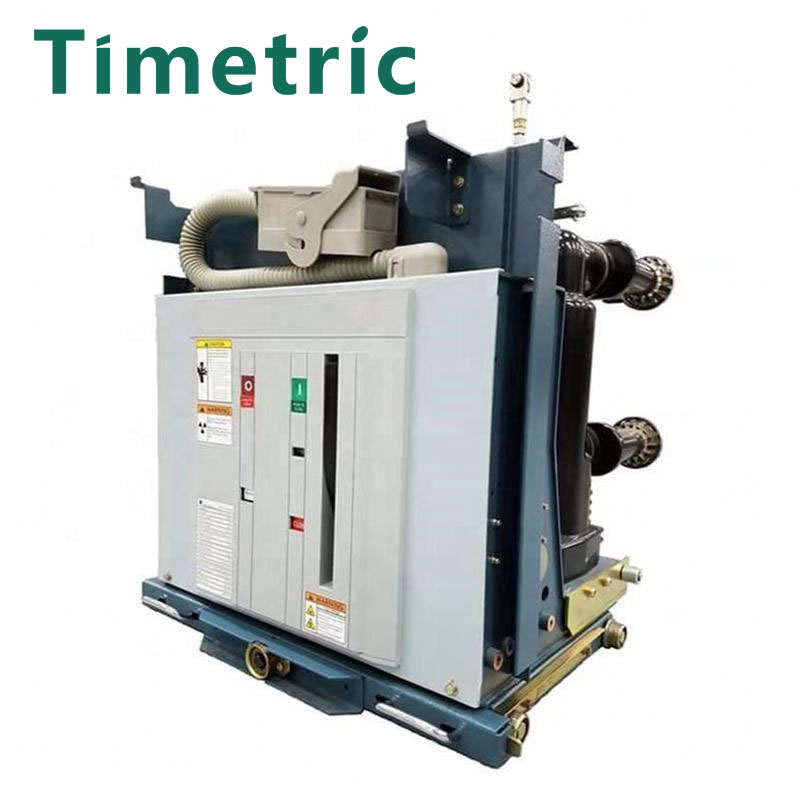

Timetric Embedded Poles Type VCB Introduction
Embedded Poles Type VCB is an indoor switchgear for three-phase AC power system with rated voltage of 24kV and 50Hz, as the protection and control unit of power grid equipment and power equipment in industrial and mining enterprises. It is suitable for frequent operation at rated working current, or many times to break the short circuit current.
The circuit breaker adopts the integrated design of the operating mechanism and the circuit breaker body, which can be used as the fixed installation unit and also equipped with a special propulsion mechanism to form the role of the handcart unit.
Timetric Embedded Poles Type VCB Parameter (Specification)
|
No. |
Required |
unit |
value |
|||
|
1 |
Rated Voltage |
kV |
12 |
|||
|
2 |
Rated Frequency |
Hz |
50 |
|||
|
3 |
Rated lightning impulse withstand voltage(peak) |
kV |
42 |
|||
|
4 |
Rated power frequency withstand voltage (1s)(Effective) |
kV |
75 |
|||
|
5 |
Rated short-circuit breaking current |
kA |
20 |
25 |
31.5 |
40 |
|
6 |
Rated current |
A |
630,1250 |
630,1250,1600 |
1250,1600 |
1600,2000 |
|
2000,2500 |
2500,3150 |
|||||
|
7 |
Rated peak withstand current |
kA |
50 |
63 |
80 |
100 |
|
8 |
Rated short time withstand current |
kA |
20 |
25 |
31.5 |
40 |
|
9 |
Rated short circuit continuous time |
s |
4 |
|||
|
10 |
Rated short-circuit on/off current |
kA |
50 |
63 |
80 |
100 |
|
11 |
Percentage of the d c component of the rated short-circuit breaking current |
% |
35 |
|||
|
12 |
Rated operation sequence |
|
O-0.3s-CO-180s-C |
|||
|
O-180s-CO-180s-C(40kA) |
||||||
|
13 |
Rated single/back-to-back capacitor bank breaking current |
A |
630/400 |
630/400 |
630/400 |
800/400 |
|
14 |
Rated short-circuit current breaking |
times |
50 |
50 |
50 |
30 |
|
15 |
Mechanical life |
times |
10000 |
|||
|
16 |
Rated opening/closing operation voltage |
V |
AC/220 D C/220 |
|||
|
17 |
Rated voltage of energy storage motor |
V |
AC/220 D C/220 |
|||
|
18 |
Power frequency withstand voltage of secondary circuit |
V |
2000 |
|||
Timetric Embedded Poles Type VCB Advantage
● Simple structure
● Adapt ultra low resistance type vacuum interrupter
● Adapt optimization and modular spring operating mechanism
● Suitable for occasions with frequent operation
● Free maintenance and long service life
● High reliable performance
