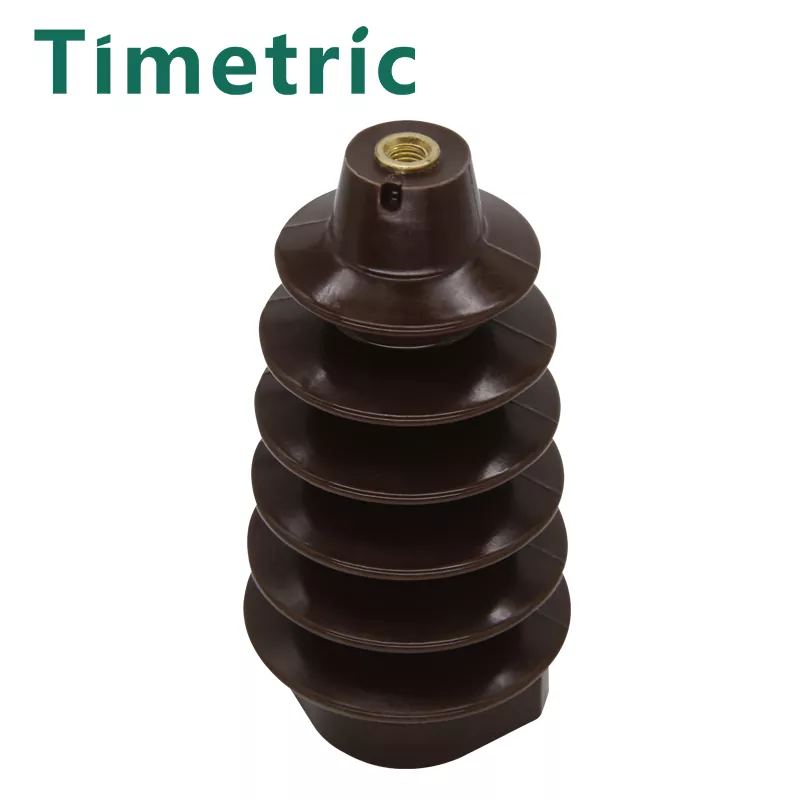

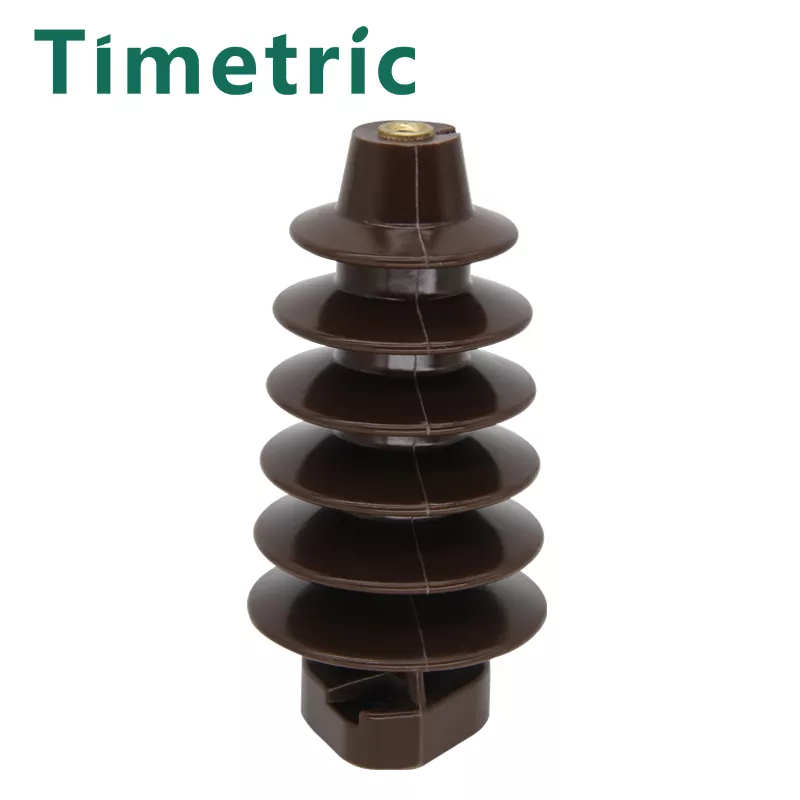

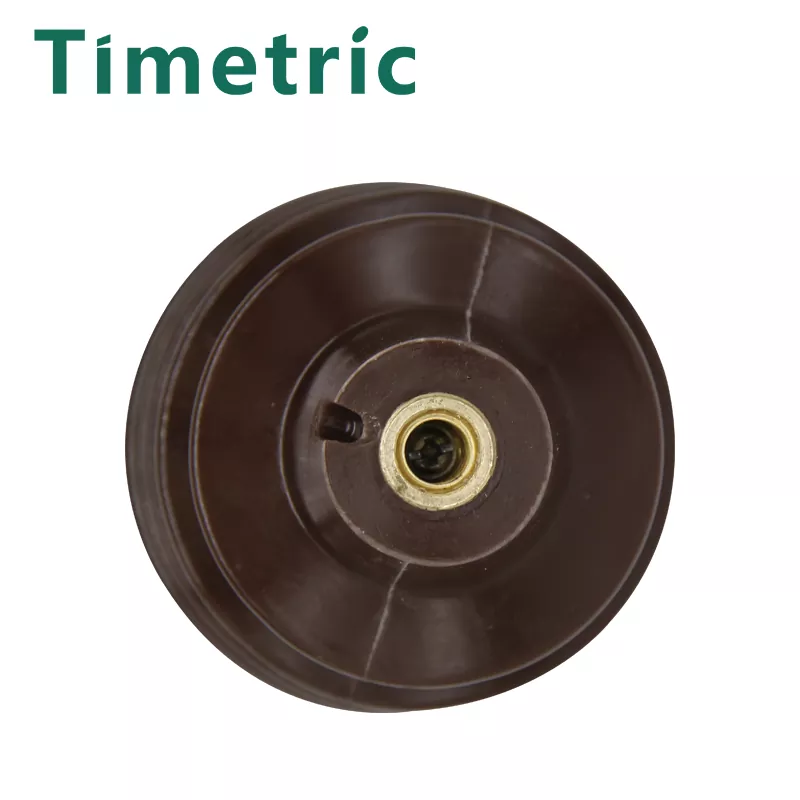

Epoxy Resin Tower Type 50PF Sensor

Timetric Epoxy Resin Tower Type 50PF Sensor  Introduction

Insulator:
An insulator, also referred to as a supporting insulator, plays a critical role in ensuring effective insulation control in electrical systems. Its primary function is to provide support for wires and other electrical components, preventing the unwanted flow of current to the ground. This is achieved by increasing the creepage distance, which is the path that current would need to take to bypass the insulator.

Our company offers a range of insulators that boast several key advantages, making them highly desirable for various applications. First and foremost, these insulators are engineered with exceptional strength, ensuring their ability to withstand the rigors of high voltage environments. This strength is complemented by their outstanding corrosion resistance, which safeguards their integrity over extended periods of service.

One of the most significant benefits of our insulators lies in their exceptional electrical performance. They possess superior insulating properties, effectively preventing current leakage and enhancing overall electrical efficiency. This makes them particularly well-suited for deployment in high voltage switchgear applications, where reliable insulation is paramount.

Furthermore, safety is a top priority with our insulators. They are designed and manufactured to meet rigorous safety standards, providing peace of mind to our customers and ensuring the protection of both personnel and equipment. The robust construction of these insulators enhances their resistance to environmental factors and mechanical stresses, further contributing to their longevity and reliability.

Sensor:
The lower two screws in our product function as conductors, allowing them to induce current and efficiently transmit essential information to a live display. This innovative design enables accurate data measurement and real-time monitoring of crucial parameters.

In conclusion, our insulators offer a comprehensive set of advantages, combining high strength, excellent corrosion resistance, outstanding electrical performance, and exceptional safety features. With their reliability and versatility, they are the ideal choice for a wide range of high voltage switchgear applications, providing the necessary support and insulation control in electrical systems.

Timetric Epoxy Resin Tower Type 50PF Sensor Parameter (Specification)

]Certification

ISO9001

Customized

Customized

Voltage 12kv

]Impulse Withstand Voltage (Kv)  75

Frequency (Hz)

50/60

]Transport Package Standard Export Packing Way by Sea, Air, Railway

]Origin China

HS Code 8546900000

Timetric Epoxy Resin Tower Type 50PF Sensor Feature And Application

Introducing the Timetric Epoxy Resin Insulation Sensor, designed to provide exceptional performance and reliability in switchgear applications. This sensor is specifically engineered to connect with a charged display device, enabling accurate measurement and monitoring of electrical parameters.

Crafted from high-quality epoxy resin, the sensor undergoes a meticulous manufacturing process to ensure its superior quality. The epoxy resin is subjected to vacuum casting, utilizing the advanced APG (Automatic Pressure Gelation) technique, along with liquid silica gel formation. These processes guarantee the production of top-notch products that meet stringent quality standards.

To ensure the utmost precision and reliability, the Timetric Epoxy Resin Insulation Sensor can be thoroughly inspected using various advanced testing instruments, such as X-ray instruments, bureau put instruments, and thermal Cycle Test Machines.

Trust in Timetric's commitment to excellence and choose our Epoxy Resin Insulation Sensor for reliable and accurate measurements in your switchgear applications.
