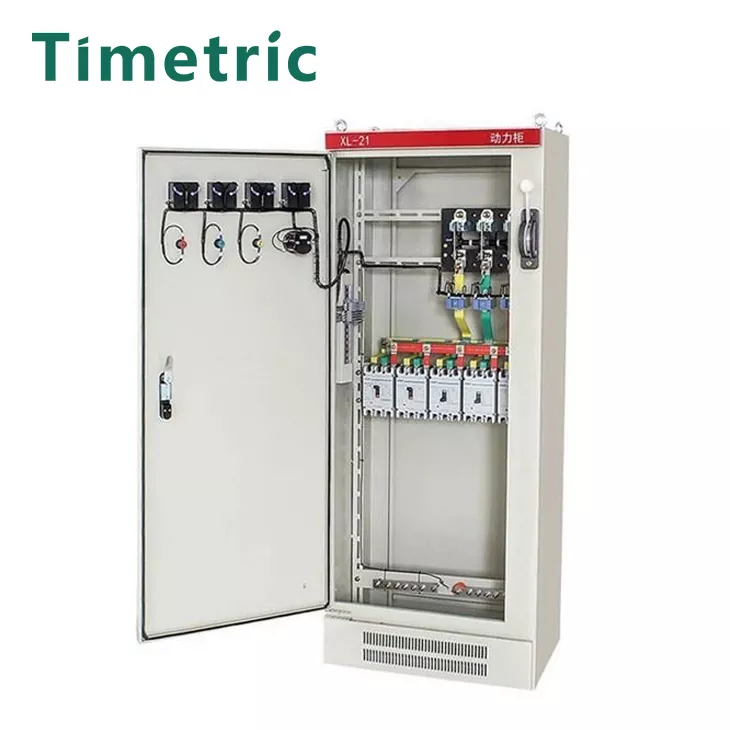

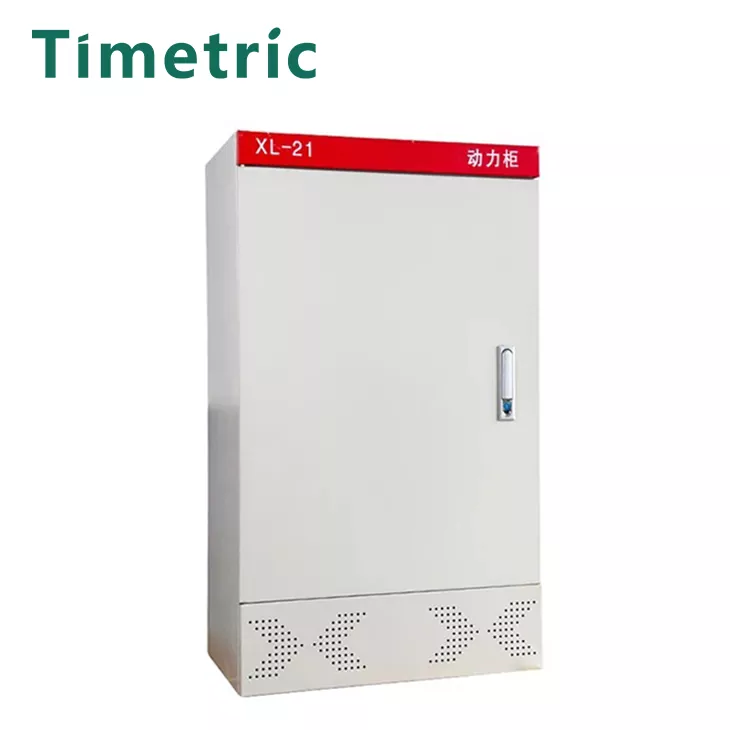

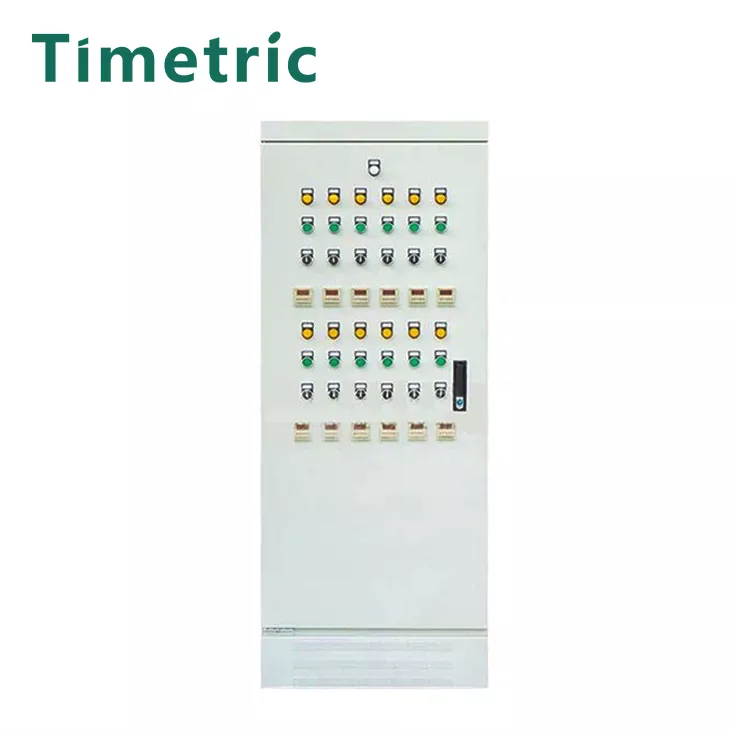

Indoor Closed Power Distribution Cabinet XL-21

Timetric Electric Indoor closed power distribution cabinet XL-21 (21 cabinet for short), the "XL" series also includes XL-20 (20 cabinet), XL-28 (28 cabinet), etc. The difference between them is the different voltages in the cabinets. Taking the 21 cabinet as an example, the voltage is often not more than 500V.

The "XL" series is called a power cabinet（Indoor closed power distribution cabinet XL-21）, which can actually be regarded as a large distribution box, often used in terminal circuits.

The difference between it and other cabinet types is that it is a large distribution box because of the following reasons:

1. The main busbar is not fixed;

2. The isolating knife switch is opened forward;

3. It is only responsible for the lower end load and only loads the maintenance load.

It is suitable for power plants and industrial and mining enterprises, three-phase three-wire, three-phase four-wire, and three-phase five-wire systems with AC voltage of 500V and below, for power lighting and power distribution. It is also suitable for making various motor starters, including full-voltage direct starter, full-digital control soft starter, auto-coupling step-down starter, star-delta starter, multi-speed motor starter, etc.

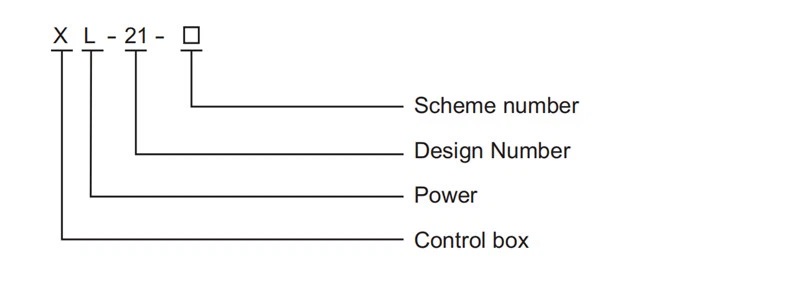

Model Description

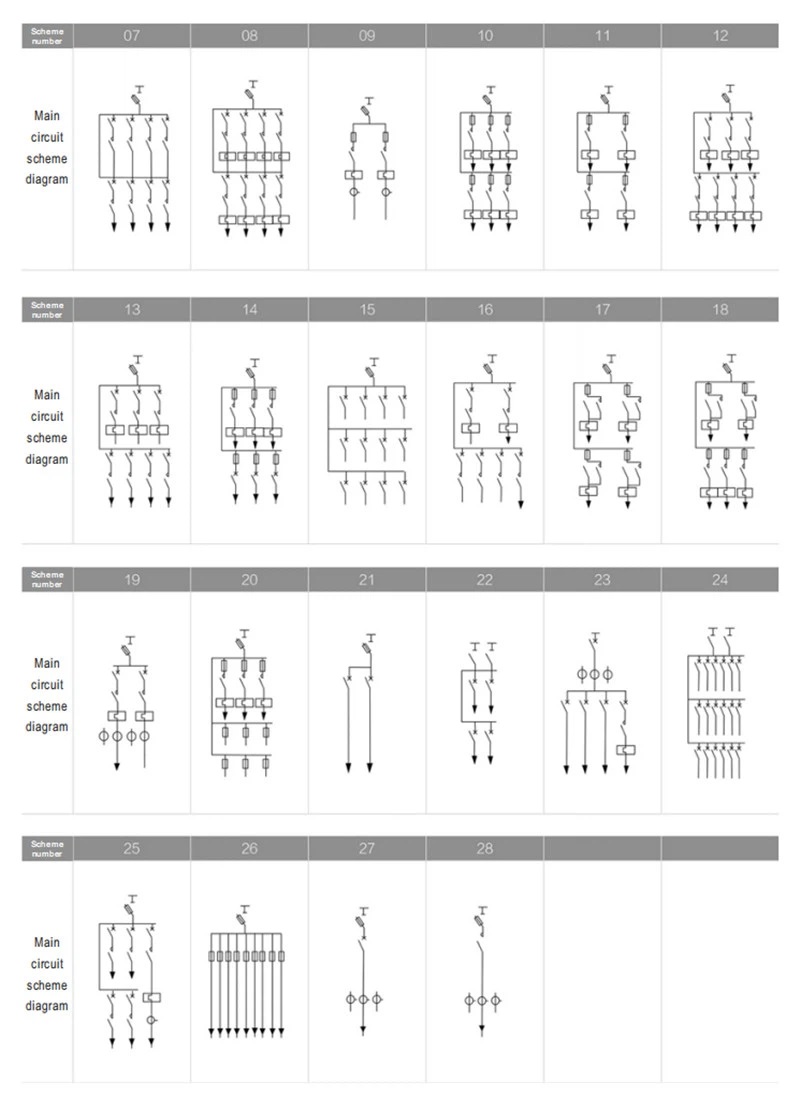

Main Technical Parameters

Technical parameters of the main equipment

Knife fusion combination switch

Current transformer

Fuse

Structure And Mounting Dimensions

Working Environment：

The use environment requirements ofTimetric ElectricIndoor closed power distribution cabinet XL-21, humidity, altitude, air quality and other aspects.‌

1. Ambient temperature: -50°C~+40°C, the average temperature within 24h shall not exceed +36°C;

2. Altitude: not more than 2000m;

3. Relative humidity: not more than 50% when the ambient air humidity is +40°C; at lower humidity, there may be higher relative humidity (e.g. 90% at +20°C), and moderate condensation is allowed considering the temperature change.

The inclination between the vertical plane and the equipment should not exceed 5°. The equipment should be installed in a place without severe vibration, impact or corrosion.

Advantages and features of switchgear

The main features and advantages ofTimetric ElectricIndoor closed power distribution cabinet XL-21 include the following aspects:

1. High reliability: Use high-quality electrical components to ensure reliability and long service life.

2. Excellent anti-electromagnetic interference ability to ensure system stability.

3. Flexible design: Modular design allows easy expansion and maintenance, and flexible configuration is achieved.

4. Multiple inlet and outlet options, including top and bottom entry, to meet different on-site installation requirements.

5. Safety: Equipped with comprehensive protection devices, including overload, short circuit, and leakage protection to ensure safety.

6. The shell is made of high-strength cold-rolled steel plate, and the surface is sprayed to achieve IP30 or higher protection level, effectively preventing the influence of the external environment on the internal components.

7. Easy to operate: Reasonable panel layout, the location of various switches, indicator lights and instruments is clear at a glance, and the operation is simple.

8. Clear markings and operating instructions help users quickly become familiar.

9. Efficient heat dissipation: Combine natural ventilation and forced ventilation to ensure effective heat dissipation during high-load operation. The internal cabinet layout ensures smooth airflow and prevents overheating.

10. Environmental protection and energy saving: Use low-power components to reduce energy consumption, in line with modern green environmental protection concepts.

Low noise, stable operation, and minimal impact on the environment.

11. Intelligence: Optional intelligent monitoring system for real-time monitoring and recording of parameters such as current, voltage and power. Support remote monitoring and management to enhance system intelligence.

12. Easy maintenance: Modular design, easy replacement and repair, reducing downtime.

Provide detailed technical support and after-sales service to ensure long-term stable operation. |

13. Cost-effectiveness: Reasonable design and excellent cost control, providing high cost performance.

14. Suitable for projects of various budgets, providing economical and practical power distribution solutions.

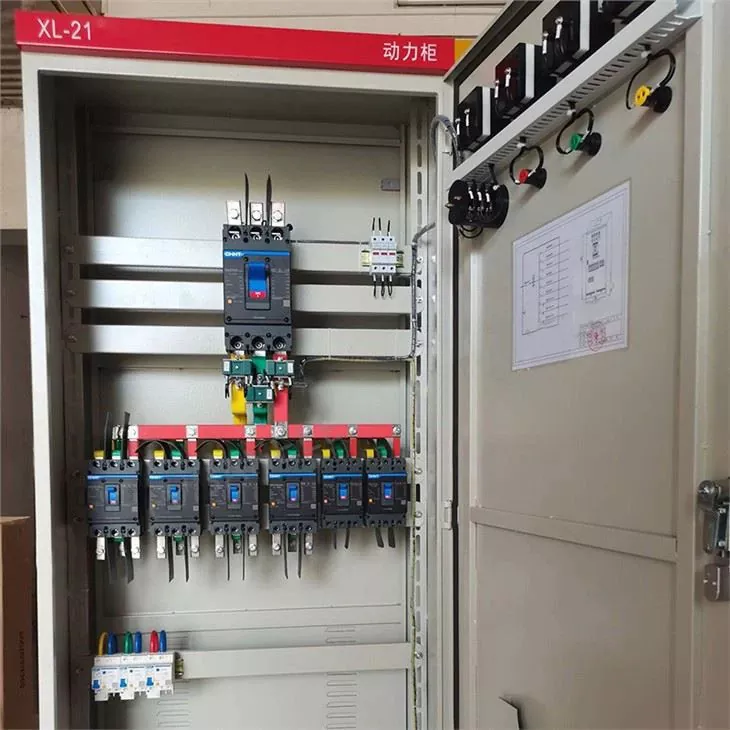

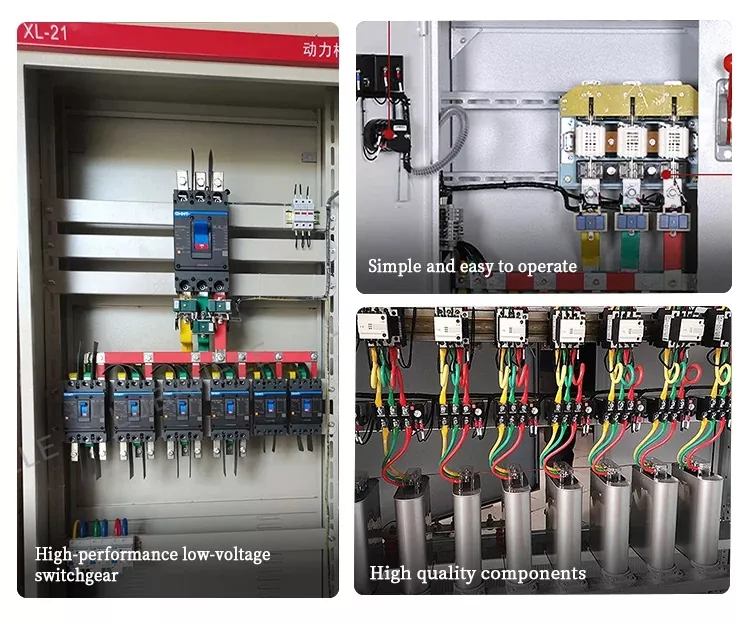

Product Real Shot

FAQ

Do you produce your medium-voltage and low-voltage switchgear in-house?

Yes, our company independently produces and customizes various switch cabinets, with a mature technical team and good pre-sales service.

What is your fastest delivery time?

Normally, we accept customer inquiries. After the switch cabinet technical parameters are connected, it takes 1-2 days to issue a price list and communicate with customers about the production and delivery time based on the actual situation.

How is your after-sales service?

We support a 1-year warranty. The normal quotation does not include on-site after-sales service. Free online communication and guidance are available.
