Indoor Grounding Switch

Timetric electrical is a large-scale Indoor Grounding Switch manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products are known for their top-notch quality and competitive pricing, making us a preferred choice for customers worldwide. We take pride in our commitment to excellence and customer satisfaction, which has helped us build a solid reputation in the industry. We strive to foster long-term partnerships with our clients in China and beyond, and we are dedicated to providing them with the best possible service.

Send Inquiry

Product Description

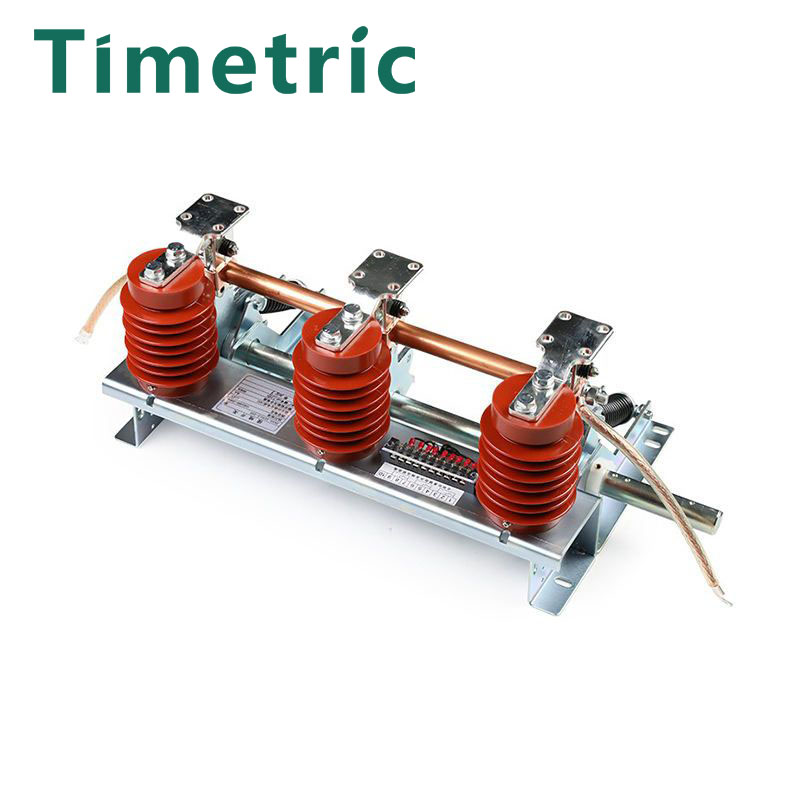

Timetric Indoor Grounding Switch Introduction

Indoor Grounding Switch is a mechanical switching device used to intentionally ground a circuit.Under abnormal conditions (such as short circuits), the Indoor Grounding Switch can carry the specified rated short circuit current and corresponding peak current within the specified time; However, under normal operating conditions, it is not required to carry the rated current.

Timetric Indoor Grounding Switch Parameter (Specification)

Brand Name：		Timetric
Certification：		ISO9001,ISO45001,ISO14001
Place of Origin:		Zhejiang, China
Model Number：		JN15-12/31.5-210
Rated short-time withstand current：		31.5KA
Rated voltage：		12KV
Product Description
Model No.		JN15-12/31.5 HV earthing switch
Standard:		GB1985-2004(AC HV disconnect switch and earthing switch), IEC129
Application:		KYN28-12/KYN28-24 HV switchgear and various types HV switchgear
Main function:		As a grounding protection for high-voltage equipment maintenance
Central distance between poles:		165mm/180mm/200mm/ 210mm/220mm/230mm/250mm/275mm
The main technical parameters:
Item		Unit	Data
Rated voltage:		KV	12
Rated short-time withstand current:		KA	31.5
Rated short-circuit duration:		S	4
Rated short-circuit making current:		KA	80
Rated peak withstand current:		KA	80
Rated insulation level	PE withstand voltage(1min)	KV	Phase to earth Phase to phase	42
	Lightning impulse withstand voltage			75
Mechanical endurance		Time	2000

Timetric Indoor Grounding Switch Feature And Application

As a grounding protection device in AC 50Hz power systems of 12kV and below, it has the ability to close short-circuit current, has a reasonable structure, small size, flexible operation, and is easy to install and adjust.
