High speed grounding switches

Timetric electrical is a large-scale High speed grounding switches manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products are priced competitively, providing an excellent price advantage to our customers. As a result, our switches are widely used across various markets, including South America, the Middle East, Africa, and Southeast Asia. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

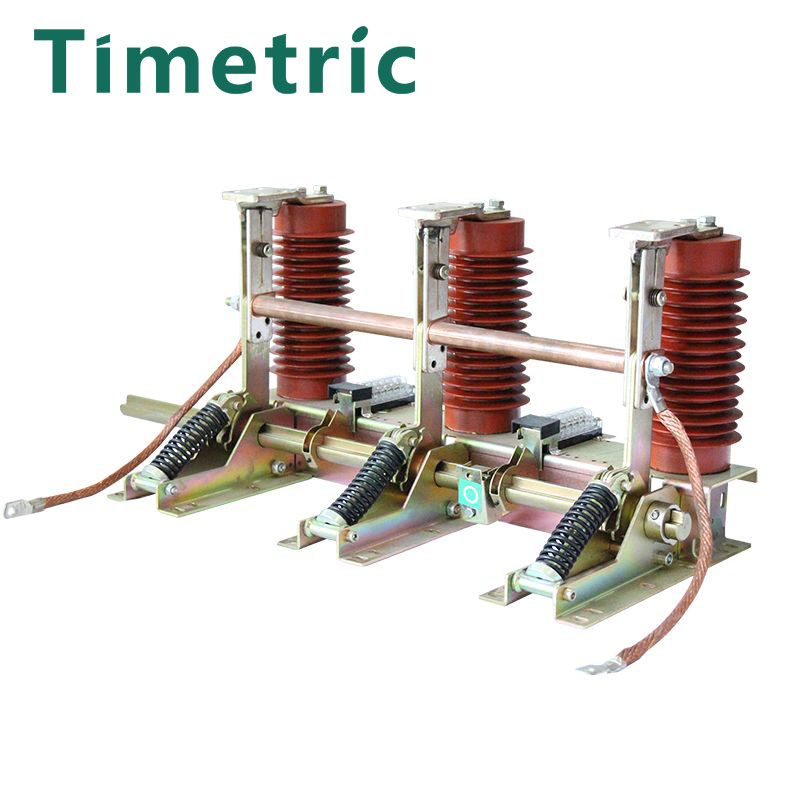

Timetric High speed grounding switches Introduction

A High speed grounding switch is a special purpose grounding switch with a certain ability to make short-circuit current. After the grounding fault of the line is removed, the latent current of the faulty line is formed by the power supply of adjacent operating lines. By using a fast grounding switch to close, the latent current can be eliminated, and then the grounding switch can be quickly opened to ensure the successful automatic reclosing of the line.

Timetric High speed grounding switches Parameter (Specification)

Model NO.	JN15A-12/31.5
Voltage	12kv
Frequency	50Hz
Phase Distance	150mm/210mm/275mm
Rated Short-Time Withstand Current	31.5ka
Altitude	Not Higher Than 1000m
Transport Package	Standard Export Shipping Package
Origin	Zhejiang, China

Timetric High speed grounding switches Feature And Application

Ordinary grounding switches are installed next to the isolation switches on both sides of the circuit breaker, only serving as grounding for both sides during circuit breaker maintenance; The fast grounding switch is configured on the side of the outgoing line isolation switch near the line of the outgoing circuit, and it has two functions:

(1) Capacitive current generated by electrostatic induction and inductive current generated by electromagnetic induction when switching parallel overhead lines;

(2) When the internal insulator of the casing experiences creepage or arcing, the fast grounding switch quickly grounds the main circuit and uses the circuit breaker to cut off the fault current.
